| Product Name: |

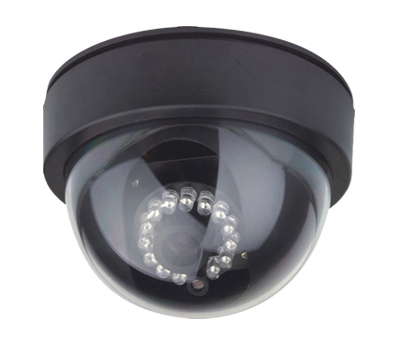

COLOR IR DOME CAMERA |
| Model No: |
K-515R |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model:K-515R
Category: DOME CAMERA-COLOR IR DOME CAMERA
Summary:1?Compatible with Various Lens
2?Popular dome
3?IR LED
Features:
|
Model |
K-515R |
|
Image Sensor |
1/3"SONY Super HAD CCD |
|
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
|
Sensing Area |
4.8mm×3.6mm |
|
Signal System |
PAL/NTSC |
|
Horizontal Resolution |
480 TV Line |
|
Lens |
3.6mm,6mm,8mm,12mmSelectable |
|
Minimum Illumination |
0Lux |
|
Back Light Compensation |
Internal |
|
Shutter Speed |
1/50(1/60)——1/100,000(s ) |
|
White Balance |
Auto Tracking White Balance |
|
S/N Ratio |
More than 48dB (AGC OFF ) |
|
Video Output |
1.0Vp-p,75O(BNC) |
|
Power Requirement |
DC12V/500mA |
|
Power Consumption |
Less than 2.8w |
|
Infrared Wave Length |
850nm |
|
Infrared Lamps Irradiation Distance |
25M |
|
Infrared Lamps |
D/N on /off |
|
Infrared for Infrared Turn On |
>3Lux |
|
Video Out |
VIDEO OUT ( BNC ) |
|
Dimensions (mm)
Weight (g) |
128(D)×106(H) 200g | | |
|
|
|
|
|
