| Product Name: |

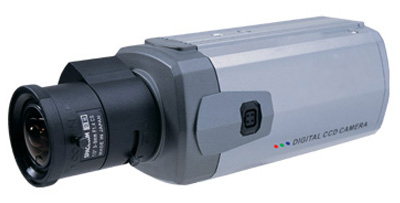

ECLIPSE CAMERA |
| Model No: |
K-540D |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model£ºK-540D
Category£º ECLIPSE CAMERA
Summary£º1.1/3 sony 540 TV Line
3.Niewing objects surrrounded by bright light
4. Projects of parking garge entrance &exit
Features£º
|
Model |
K-540D |
|
Image Sensor |
1/3¡å SONY Super HAD CCD |
|
Effective Pixels |
PAL:752(H)¡Á698(V) NTSC:768(H)¡Á494(V) |
|
Sensing Area |
4.8mm¡Á3.6mm |
|
Signal System |
PAL/NTSC |
|
Horizontal Resolution |
540TV Lines |
|
Lens Mount |
C/CS mount |
|
Minimum Illumination |
0.5Lux/F1.2 |
|
Gain Control |
Auto |
|
Back Light Compensation |
|
|
Electronic Shutter |
on /off switchable |
|
Shutter Speed |
Auto : PAL:1/50¡«1/100,000£¨s£©NTSC:1/60¡«1/100,000£¨s£© |
|
Auto Iris Lens |
VIDEO/DCswitchable |
|
White Balance |
Auto Tracking White Balance |
|
S/N Ratio |
More than 52db(AGC OFF) |
|
Video Output |
1.0Vp-p,75¦¸£¨BNC£© |
|
Power Quirement |
DC12V |
|
Power Consumption |
Less than 2.8W |
|
Video Out |
VIDEO OUT ( BNC ) |
|
Dimensions £¨mm £©/
Weight £¨g £©: |
120¡Á65¡Á55 580g | | |
|
|
|
|
|
