| Product Name: |

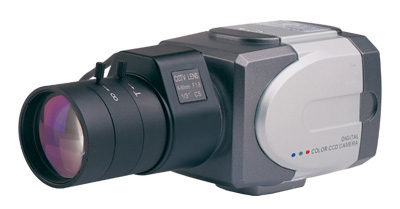

ECLIPSE CAMERA |
| Model No: |
K-515EL |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model:K-515EL
Category: ECLIPSE CAMERA
Summary:1. 1/3 AIPROS CCD
2. Niewing objects surrounded by bright light
3.Projects of parking entrane &exit
Features:
|
Model |
K-515EL |
|
Image Sensor |
1/3" A1PROS Super HAD CCD |
|
Effective Pixels |
PAL:500(H)×582(V) NTSC:510(H)×492(V) |
|
Sensing Area |
4.8mm×3.6mm |
|
Signal System |
PAL/NTSC |
|
Horizontal Resolution |
420TV Lines |
|
Lens Mount |
C/CS Mount |
|
Minimum Illumination |
0.5Lux/F1.2(IR OFF) |
|
Gain Control |
Auto |
|
Back Light Compensation |
|
|
Electronic Shutter |
on /off Optional |
|
Shutter Speed |
Auto : PAL:1/50~1/100,000(s)NTSC:1/60~1/100,000(s) |
|
Auto Iris Lens |
VIDEO/DC Switchable |
|
White Balance |
Auto Tracking White Balance |
|
S/N Ratio |
48db(AGC OFF) |
|
Video Output |
1.0Vp-p,75O(BNC) |
|
Power Requirement |
DC12V |
|
Power Consumption |
Lss than 2.8W |
|
Video |
VIDEO OUT ( BNC ) |
|
Dimensions (mm)/
Weight (g): |
120×65×55 580g | | |
|
|
|
|
|
