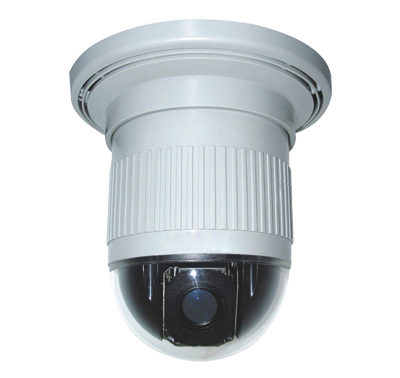

Model£ºK-515K-4A
Category£º SPEED DOME CAMERA
Summary£ºMinimum Illuminance :0.01lux , 128prsets poiint ,8 pattern tours , 16preset positions for each group , Static and dust-removal :Double -liner housing designed for ventilation , protection standard IP66, Built in mult-protocol :PELCO-D/P
Features£º
|
Model |
K-515K-4A |
|
Image Sensor |
1/4¡åSONY CCD |
|
Signal System |
PAL /NTSC |
|
Effective Pixels |
440.000PIXELS |
|
Horizontal Resolution |
480 TV Line |
|
S/N Ratio |
¡Ý48db |
|
White Balance |
Auto Tracking White Balance |
|
Built -in Lens |
216x f=4.1-73.8mm |
|
Shutter Speed |
1/1¡ª1/10,000s |
|
Minimum Illumination |
0.7lux |
|
Gain Control |
|
|
Shutter |
Auto /Manual |
|
Back Light Compenation |
on /off |
|
Video Output |
1.0Vp-p,75¦¸(BNC) |
|
Manual Speed |
Slowest 1¡ã/S fastest :280¡ã/S |
|
Preset Location |
128Preset |
|
Baud Rate |
19200bps,9600bps,4800bps,2400bps,1200bps |
|
Remote Control |
RS485 |
|
Power |
24VAC 3A | |
