Model No. |

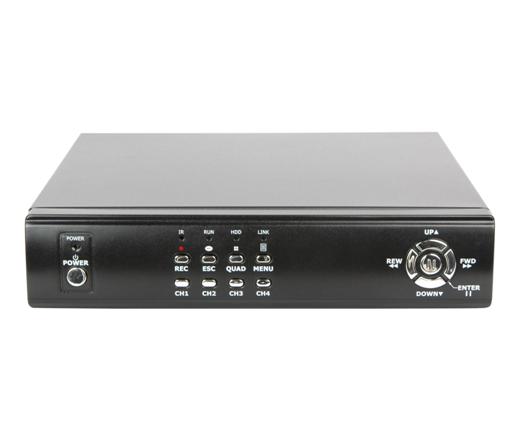

KS-2004 |
|
Video Input |
4CH inputs (BNC) |
|
Video Output |
2 channel output (1BNC and 1 S-video), VGA optional |
|
Recording Frame |
PAL: 25f/s/ch NTSC: 30f/s/ch |
|
Display Frame |
PAL: 25f/s/ch NTSC: 30f/s/ch |
|
Recording Resolution |
PAL: CIF:352x240 (CIF) NTSC: CIF:352x288 (CIF) PAL: 704 x 288 (Half D1) NTSC: 704 x 240 (Half D1) |
|
Compression |
M-JPEG |
|
Record Image Quality |
3 levels adjustable (High, Middle and low) |
|
Record Mode |
Manual, Alarm, Motion detection, scheduled |
|
Video Search |
Search by event, time and channel |
|
Playback |
One channel or four channel synchronously |
|
Motion Detection |
6¡Á8 motion detection windows, sensitivity adjustable |
|
Audio |
No. |
|
Alarm |
No. |
|
Storage Material |
IDE connector, Support 500G HDD. |
|
Operation |
Triple operation, support PS2 mouse control ,remote control |
|
Backup / Upgrade |
USB back up and USB upgrade |
|
Weight |
2KG |
|
Dimensions |
300mm£¨L£©¡Á272mm£¨W£©¡Á58mm£¨H£© |
