| Product Name: |

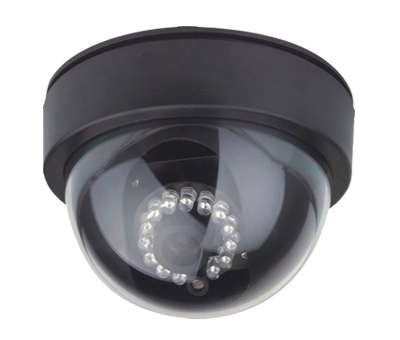

COLOR IR DOME CAMERA |
| Model No: |
K-515RS |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model:K-515RS
Category: DOME CAMERA-COLOR IR DOME CAMERA
Summary:1?Compatible with Various Lens
2?Popular dome
Features:
|
Model |
K-515RS |
|
Image Sensor : |
1/4"SHARP CCD |
|
Effective Pixels : |
PAL:500(H)×582(V) NTSC:510(H)×492(V) |
|
Sesing Area : |
3.6mm×2.4mm |
|
Signal System : |
PAL/NTSC |
|
Horizontal Resolution: |
420 TV Line |
|
Lens : |
3.6mm,6mm,8mm,12mm selectable |
|
Minimum Illumination: |
0 LUX |
|
Back Light Compensation : |
Internal |
|
Shutter Speed : |
1/50(1/60)——1/100,000(s) |
|
White Balance : |
Auto Tracking White Balance |
|
S/N Ratio : |
More than 48db (AGC OFF) |
|
Video Output : |
1.0Vp-p,75O(BNC) |
|
Power Requirement : |
DC12V/500mA |
|
Power Cnsumption: |
Less than 2.8W |
|
Infrared Wave Length : |
850nm |
|
Infrared Lamps Irradiation Distance |
15M |
|
Infrared Lamps : |
D/N on /off |
|
Illumination for Infrared Turn on : |
>3Lux |
|
Video Out : |
VIDEO OUT ( BNC ) |
|
Dimensions (mm)/
Weight (g): |
128(D)×106(H) 200g | | |
|
|
|
|
|
