| Product Name: |

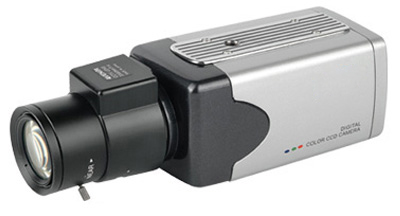

COLOR CCD CAMERA |
| Model No: |
K-510CP |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model:K-510CP
Category: COLOR CCD CAMERA
Summary:1?Compatible with Various Lens
2?Popular dome
Features:
|
Model |
K-510CP |
|
Image Sensor : |
1/4" SONY CCD |
|
Effective Pixels : |
PAL:500(H)×582(V) NTSC:510(H)×492(V) |
|
Sensing Area : |
3.6mm×2.4mm |
|
Sigal System : |
PAL/NTSC |
|
Horizontal Resolution: |
420TV Line |
|
Lens Mount : |
C/CS Mount (Mount optional ) |
|
Minimum Illmination : |
F1.2,1.0Lux |
|
Gain Control: |
Auto |
|
Back Light Compensation: |
on /off Switchable |
|
Electronic Shutter : |
|
|
Shutter Speed : |
1/50(1/60)——1/100,000(s) |
|
Auto Iris Lens : |
VIDEO/DC Switchable |
|
White Balance : |
Auto Tracking White Balance |
|
S/N Ratio: |
MOre than 48db (AGC OFF) |
|
Video Output : |
1.0Vp-p,75O(BNC) |
|
Power Requirement : |
DC12V/500mA |
|
Power Consumption: |
Less than 2.8W |
|
Video Output : |
VIDEO OUT ( BNC ) |
|
Demensions (mm)/
Weight (g): |
113×55×45 250g | |
|
|
|
|
|
|
