| Product Name: |

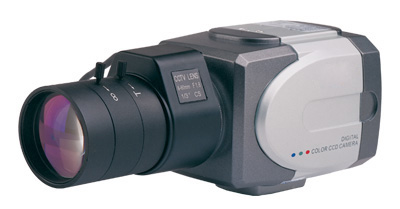

COLOR HIGH RESOLUTION CCD CAMERA |
| Model No: |
K-515H |
|
|
|
Please Click your location South/North America, Europe, Middle East and Africa, Asia & others, for price enquiry.
 |
 |
Model:K-515H
Category: COLOR CCD CAMERA-COLOR HIGH RESOLUTION CCD CAMERA
Summary:Compatible with Various Lens , Popular dome
Features:
|
Model : |
K-515H |
|
Image Sensor : |
1/3" SONY Super HAD CCD |
|
Effective Pixels : |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
|
Sensing Area : |
4.8mm×3.6mm |
|
Signal System: |
PAL/NTSC |
|
Hrizontal Resolution : |
480 TV Line |
|
Lens Mount : |
C/CSMount (Mount optional ) |
|
Minimum Illumination : |
F1.2,0.5Lux |
|
Gain Control : |
Auto |
|
Back Linght Compensation : |
on /off Switchable |
|
Electronic Shutter : |
|
|
Shutter Speed : |
1/50(1/60)——1/100,000(s) |
|
Auto Iris Lens : |
VIDEO/DCswitchable |
|
White Balance : |
Auto Tracking White Balance |
|
S/N Ratio: |
More than 48db (AGC OFF) |
|
Video Output : |
1.0Vp-p,75O(BNC) |
|
Power Requirement : |
DC12V/500mA |
|
Power Consumption : |
Lss than 2.8W |
|
Video Output : |
VIDEO OUT ( BNC ) |
|
Demensions (mm)/
Weight (g): |
113×55×45 250g | | |
|
|
|
|
|
